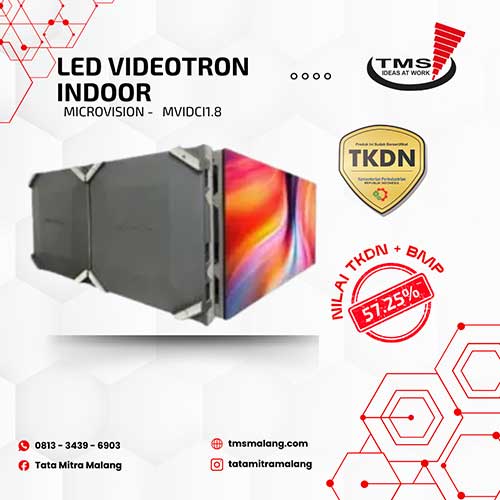

LED Videotron Indoor All In One Display Diecasting 1.8 MR 173 Inch (INCLUDE AUDIO SYSTEM)

1. Amplifier Specifications

Power

• Power Requirement: 220–240 V AC, atau 24 V DC

• Rated Output: 120 W

• Power Consumption: 124 W (AC operation EN60065)

• Frequency Response: 50 – 20,000 Hz (±3 dB)

Input

• MIC 1–3: –60 dB (1.0 mV), 600 Ω, balanced, phone jack

• AUX 1–2: –20 dB (100 mV), 10 kΩ, unbalanced, RCA pin jack

Output

• Speaker Out (balanced/floating):
  • High Impedance: 83 Ω (100 V), 42 Ω (70 V)
  • Low Impedance: 4 Ω (22 V)

• Rec Out: 0 dB (1.0 V), 600 Ω, unbalanced, RCA

Other Features

• Phantom Power: DC +21 V (MIC 1)

• S/N Ratio: > 60 dB

• Tone Control: Bass ±10 dB @100 Hz, Treble ±10 dB @10 kHz

• Muting: MIC 1 dapat mute input lain (0–30 dB)

• Indicators: Power LED, Signal LED, Peak LED

Physical

• Dimensions: 420 × 101 × 360 mm

• Weight: 10.8 kg

---

2. Speaker Specifications

General

• Enclosure: 2-way bass-reflex

• Rated Input: 30 W

• Rated Impedance: 8 Ω

100V Line Taps

• 330 Ω (30 W)

• 500 Ω (20 W)

• 670 Ω (15 W)

• 1 kΩ (10 W)

• 2 kΩ (5 W)

70V Line Taps

• 170 Ω (30 W)

• 250 Ω (20 W)

• 330 Ω (15 W)

• 500 Ω (10 W)

• 1 kΩ (5 W)

Performance

• SPL: 90 dB (1 W, 1 m)

• Frequency Response: 80 Hz – 20 kHz

• Speaker Component: 12 cm cone + dome tweeter

Physical

• Speaker Cord: 2-core Ø 6 mm

• Operating Temperature: –10 °C to +50 °C

• Water Protection: IPX4 (vertical/horizontal)

Finishing

• Enclosure: ABS resin, white (RAL9010)

• Net: Steel plate, white powder coating

• Bracket: Surface-treated steel

• Cable Size: 2 × 80

---

3. LED Display Specifications

General

• Size: 173 inch

• Display Area: 3840 × 2160 mm

• Resolution: 2065 × 1161 pixels

• Brightness: 600–900 nits

• Refresh Rate: 3840 Hz

• Color Depth: 14-bit

Power

• Max Power Consumption: 600 W/m²

• Average Power Consumption: 200 W/m²

Environment

• Operating Temperature: –40 °C to +60 °C

• Operating Humidity: 10–95%

---

4. Philips 10BDL4551T Specifications

• Display Size: 10″

• Touch: 5-point PCAP

• Resolution: 1280 × 800

• Brightness: 350 cd/m²

• Operating System: Android

• Operating Time: 24/7

• Portrait Installation: Yes

• Warranty: 3 years

---

5. ControlCue-Versatile Specifications

• 8× versatile control port

• Ethernet IP enabled controller

• 3× RS-232/485 ports (bi-directional)

• Real-time clock

• ARM processor

• RAM: 64 MB

• Flash: 256 MB

• IR code capture sensor

• Front panel indicator

• Wired 10/100 BaseT LAN

• Power: POE or 24VDC

• Web server for setup

---

6. MICROVISION Videotron P2.5 Specifications

• Screen Size: 3840 × 2400 mm

• Screen Resolution: 1536 × 960 px

• Aspect Ratio: 1.6

• Pitch: 2.5 mm

• Module Size: 320 × 160 mm

• Module Resolution: 128 × 64 px

• Module Quantity: 12 × 15

---

7. Audio Equipment List

Speakers

• Aubern ALM-10 (2-way, 10″ woofer, 250W RMS) × 2

• Aubern AFR-12

Subwoofer

• Aubern ASW-18

Power Amplifiers

• Aubern D-300U

• Aubern XS10.2 (2×1000W @8Ω | 2×1400W @4Ω | 22 kg)

• Aubern XS25.2

DSP

• Aubern EM448 (4 IN 8 OUT)

Power Sequencer

• Aubern PRO-8PI

Microphones

• Aubern AU-200HM (Wireless UHF Dual Handheld)

• Aubern AT-208 (4-Channel Antenna Distributor)

• Aubern AC600EC (8-Channel Gooseneck) × 2 sets

Rack System

• Aubern RSU16 (Rack Server 16U)

Mixer

• MIX-8PRO Fonestar (8-channel mixer)

Digital Mixer

• Aubern SD14

---

8. Struktur Tambahan

• Struktur Penguatan: Bracket
